The Water Side of Steam Generation

Boiler Feed Pumps for Low Flow and High Head

Low-flow, high-pressure feedwater for your boiler system. EHIK selects the pump and drive and plans the installation for changing boiler load, hot-water inlet conditions and controls.

New boiler installationsFeedwater-system upgradesPump sets & integrated skids

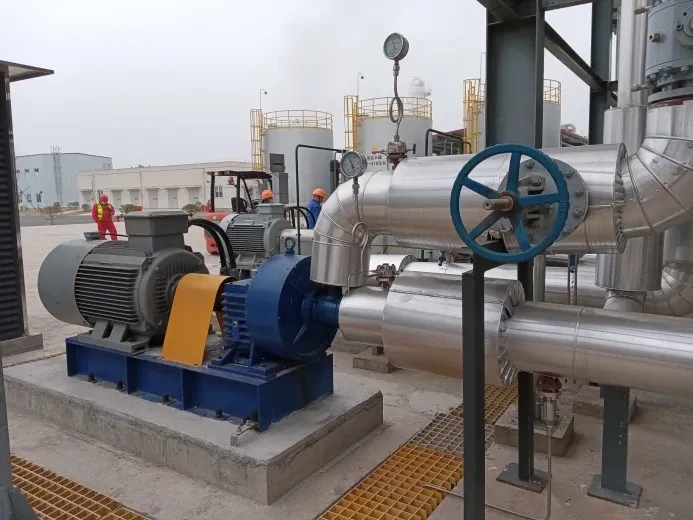

EHIK blue pump and motor connected to insulated feedwater pipework at Anyue.
Boiler-feedwater pump installation at Anyue, China.

High Head in One Stage

The pitot tube design gives high head at low flow in a single stage—an alternative to a multistage pump for suitable feedwater applications.

An Inlet-Side Mechanical Seal

The seal sits away from the high-pressure discharge. EHIK selects the seal and its support for the hot water and the real inlet conditions.

Pump, Seal and Drive from One Supplier

Selection, performance curves and outline drawings help your boiler team plan the operating point, the pump and drive size, and the pipework connections.

Field Reference / Anyue

Boiler Feedwater at Anyue.

EHIK pumps replaced multistage centrifugal pumps in the boiler-feedwater system at PetroChina's Anyue purification plant.

Multistage centrifugal pump in the Anyue boiler-feedwater system before the EHIK replacement.
Before · Multistage pump

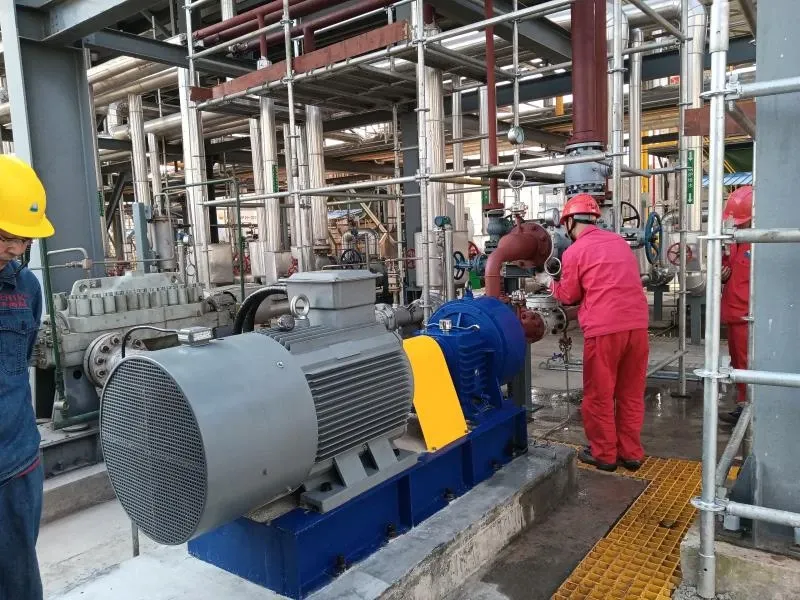

EHIK pump, gray motor and yellow coupling guard installed among pipes and valves at the Anyue feedwater site, with personnel nearby.
After · EHIK pitot tube pump

Single-Stage Pumps in an Operating Plant.

At Anyue, EHIK pump sets replaced the old multistage centrifugal pumps in a running plant's boiler-feedwater system.

The photos show the pump and drive connected to the site's feedwater piping and valves. They show what needs planning: the pump footprint, connection positions and access around the equipment.

For a new installation, EHIK selects the pump from the flow, delivery pressure, water temperature and inlet conditions, then sends outline drawings for the plant layout. For a replacement, we also check which existing equipment and connections can stay.

Discuss Your Application

Steel Plants · 2017–2018

Boiler Feedwater at Steel Plants

In five orders between 2017 and 2018, EHIK supplied boiler-feedwater pumps to steel plants for 35–55 m³/h (approx. 154–242 US gpm) at 500–550 m (approx. 1,640–1,804 ft) head.

System Connections

From Feed Tank to Boiler.

The feedwater path links the inlet supply, the pump and the delivery controls. Review them together to match the equipment to the pressure, hot water and changing boiler load.

Feed Tank / Deaerator

Water temperature, tank pressure and minimum operating level.

EHIK Pump Set

Pump, motor, coupling guard and base, selected for the feedwater requirements.

Feedwater Delivery

Control valves and pipework to the economizer or boiler water inlet.

Planning the Feedwater Pump

Match the Pump to the Boiler Load.

EHIK considers the operating range, inlet conditions and equipment connections in one selection. Start with the information you have; the other details can be worked out with your system team.

Flow, Pressure & Load

The pump and drive are matched to minimum, normal and maximum water demand, including start-up and low load. The selection uses the pressure needed at the delivery point, plus pipe and control-valve losses.

Tell us where pressure is measured, the operating cycle and the control method. With the system designer, these help define the allowed range and any minimum-flow arrangement.

Water & Suction Conditions

With hot feedwater, the inlet supply is a key part of the selection. Review together: normal and maximum water temperature, feed-tank or deaerator pressure, minimum water level, suction-line layout and water treatment.

The NPSHa (net positive suction head available) check uses the lowest tank level and the hottest water, including suction losses and the margin above the water's vapor pressure.

Connections & Controls

A clear list of included equipment helps plan the power supply, speed control, standby pumps, footprint and connection sizes. Instruments, feedwater controls and any recirculation are planned with the system designer.

Choose a pump set or an integrated skid. Then agree which pipework, valves, instruments and controls EHIK supplies, and where the package connects to the plant.

Boiler Feedwater FAQs

Plan the Feedwater System.

Discuss the water, the pump and the boiler together from the start.

Can the pump operate across changing boiler loads?

Yes. EHIK looks at minimum, normal and maximum demand together with the control scheme. With your system team, these decide the pump and drive, the allowed operating range and any minimum-flow provisions.

Does “boiler and steam systems” mean the pump handles steam?

No. This page is about the feedwater side of steam generation. The pump supplies water to the boiler system; it does not handle steam.

Is boiler pressure enough to select a pump?

No. We also need the feedwater flow, the pressure needed at the real delivery point, pipe and valve losses, and the inlet conditions. The pressure at the boiler, the feedwater header and the pump can differ, so it matters where it is measured.

Why do feed-tank level and water temperature matter?

They decide the pressure at the pump inlet and the NPSHa of the system. Hotter water has a higher vapor pressure, and a low tank level and suction losses reduce the margin. We check these with the proposed pump.

Can EHIK replace an existing multistage feedwater pump?

Contact EHIK for help with a feedwater-pump replacement. We review the operating requirements, inlet conditions and fit, and propose a pitot tube pump where it suits the service. The review also covers any piping and control changes. Custom flanges can match your existing piping.

What will I receive after an inquiry?

EHIK can provide pump selection, performance curves, outline drawings and technical support. These documents help your team check the operating point, equipment size and system connections. We reply within 1 business day.

Your New Feedwater Project

From Boiler Requirements to a Pump Proposal.

Contact EHIK for boiler-feedwater pump selection or an upgrade. We can help assess hot-water inlet conditions and changing boiler load, and send curves and drawings for your team.

Send Your Flow and Head

Tell us the flow, head and liquid. We reply within 1 business day.
Only your name or company and your email are required.
Use the Full Inquiry Form

Upgrading existing equipment? Discuss a Replacement

Pump Selection & Performance Curves

A proposed pump for your flow and pressure, with the inlet and water conditions included.

Outline Drawings & What’s Included

Equipment size and connections, and the agreed contents of the pump set or skid, for your plant layout.

Technical Support

Help with duty points, installation connections and your boiler team's questions.
