Carbon Black / Feedstock Oil & Coal Tar

Feedstock Oil & Coal Tar Pumps for Carbon Black

High-head pumps for feedstock oil, fuel oil and coal tar. EHIK supplies complete pump sets with wear-resistant pickup-tube options, based on experience in working carbon black plants.

New production linesPlant expansionExisting-pump replacement

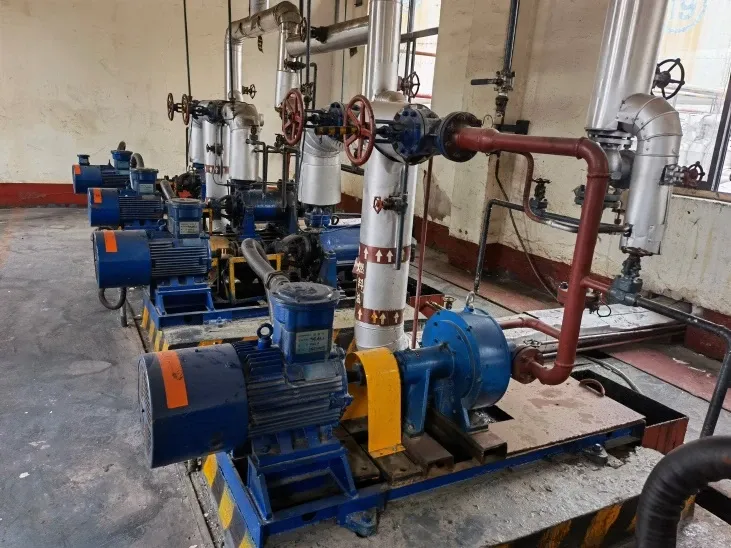

A row of blue EHIK pump sets connected to insulated pipework at a carbon-black plant in Shandong.
Naisiter, Shandong, China · Feedstock- and fuel-oil pumps replacing a multistage-pump arrangement.

High head in one stage

A rotating casing and a stationary pickup tube give high head in a single stage.

Wear-resistant pickup tubes

Wear-resistant coated pickup tubes, held by a large threaded joint instead of multiple small bolts.

Support beyond selection

Performance curves, outline drawings and technical support.

Actual Plant Installations

Installed in Working
Carbon Black Plants.

Carbon black customers include Cabot, Birla Carbon, Orion and Black Cat Carbon Black. EHIK pumps at Naisiter, Yunwei Feihu and Longxing are real references for new equipment and for upgrading existing lines.

Row of belt-driven feedstock-oil pumps at Yunwei Feihu before the EHIK replacement.
Before · Belt-driven pumps

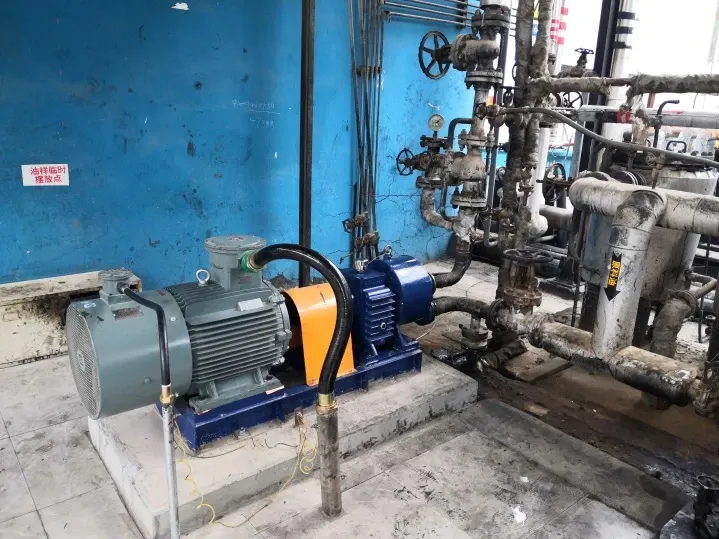

EHIK pump with a gray motor and yellow coupling guard connected to the feedstock-oil pipework at Yunwei Feihu.
After · EHIK pitot tube pump

Feedstock Oil · Production Lines 1 & 2

Yunwei Feihu

EHIK replaced belt-connected feedstock-oil pumping equipment on production lines 1 and 2. The pump and motor sit on a common base, connected to the plant's existing feedstock-oil pipework.

For a new line, EHIK plans the pump, drive, connections and base size before manufacture.

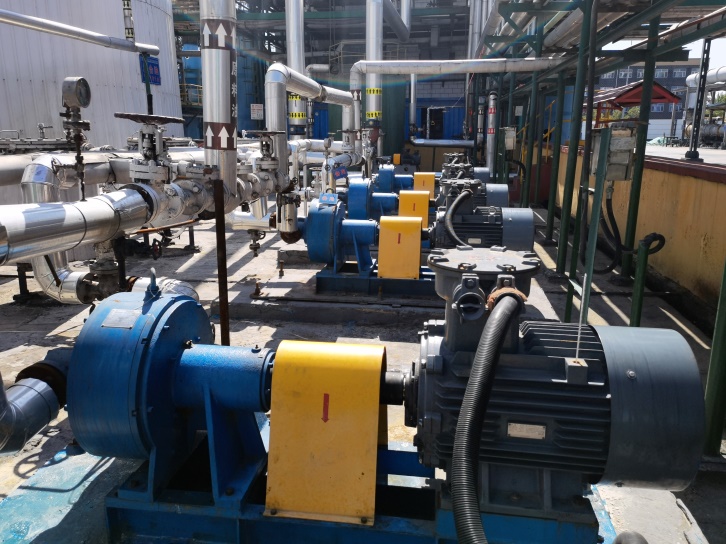

A row of EHIK pumps with yellow coupling guards and insulated process piping at the Longxing installation.
EHIK pump installation at Longxing Chemical, China.

Installed Pump Sets · Equipment Replacement

Longxing Chemical

EHIK pump sets replaced an existing belt-connected arrangement at Longxing Chemical. This installation shows multiple pump-and-drive units connected to the process piping, valves and instruments.

For an upgrade, we review the operating requirements and the existing space together, so one proposal covers both performance and fit. Custom flanges can match your existing piping.

Selected Pump Supply References

Feedstock Oil at 450 m Head.
Coal Tar at 23 m³/h.

Real supply orders cover feedstock oil, coal tar and a potassium carbonate solution. The values below are per pump.

August 2023 · 6 Pumps

Feedstock Oil

Flow per pump
5 m³/h(approx. 22 US gpm)
Head
450 m(approx. 1,476 ft)
Motor
37 kW(approx. 50 hp)

March 2024 · 2 Pumps

Coal Tar

Flow per pump
23 m³/h(approx. 101 US gpm)
Head
390 m(approx. 1,280 ft)
Motor
75 kW(approx. 101 hp)

June 2024 · 2 Pumps

Potassium Carbonate Solution

Flow per pump
0.3 m³/h(approx. 1.3 US gpm)
Head
150 m(approx. 492 ft)
Motor
2.2 kW(approx. 3 hp)

Where the Pump Fits

Start with the Liquid Circuit.

Feedstock, liquid additives and process water have different jobs. Each pump is selected for its own flow, pressure and liquid.

Main Application

Feedstock Oil & Coal Tar

We define the feed rate, oil temperature, viscosity and inlet conditions for both startup and normal production.

  1. Prepared feedstock
  2. Feedstock pump
  3. Reactor feed

Additives & Binder Solutions

The pump is matched to the solution, its concentration and the small flow needed at the addition point.

  1. Prepared solution
  2. Liquid-addition pump
  3. Process or pelletizing circuit

Quench & Process Water

The water pump is selected separately, based on water quality, inlet supply and the demand of the process users.

  1. Water supply
  2. Water pump
  3. Quench or process users

The EHIK Pumping Core

Built for High-Head
Liquid Service.

EHIK designs and manufactures the pump, offers wear-resistant pickup tubes and selects the hydraulics for your liquid.

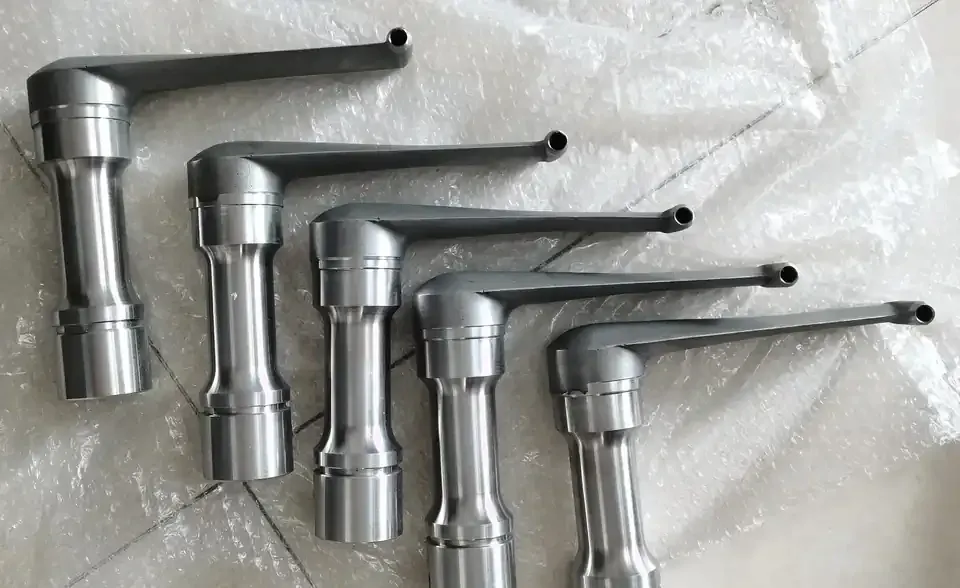

EHIK pickup-tube components arranged for inspection.
EHIK pickup tubes—the stationary component that collects liquid from the rotating casing.

One Stage for High Head

The rotating casing and stationary pickup tube create high head in a single stage. The pickup tube and speed are chosen for the flow and head you need.

Wear Protection Where It Matters

Wear-resistant coatings are available for pickup tubes in abrasive liquids. A large threaded joint holds the tube instead of multiple small bolts.

Keep Replacement Parts Within Reach

EHIK sends drawings to confirm the right spare part before supply.

Explore Pump Construction & Supply Options

Configure Around Your Oil

Plan for Startup.
Not Just Steady Production.

Oil properties and plant conditions change. A good selection plans for these changes before the equipment is ordered.

Temperature & Viscosity

Startup and operating temperatures change oil viscosity. The plant's warm-up, flushing and shutdown routine also affects the pump, drive and seal choice.

Inlet Conditions

Supply-vessel pressure, liquid level and the suction line decide the conditions at the pump inlet. They matter as much as the pressure needed downstream.

Solids & Wear

Particle size, amount and wear patterns guide our review. EHIK offers wear-resistant pickup tubes where they are needed.

Operating Range

Minimum, normal and maximum flow define the production range. EHIK matches the pickup tube, drive speed and control arrangement to that range.

Materials & Seals

The oil or solution and its contaminants decide the materials and seal. EHIK includes the seals and support equipment in the pump configuration.

Site & What’s Included

Power supply, motor needs, connections and available space decide the equipment layout. EHIK supplies complete pump sets or integrated packages with the required supporting equipment.

Carbon Black Pump FAQs

Questions Before
You Specify the Pump.

Contact EHIK for help with a new line or a pump replacement. If you know the liquid properties, flow or pressure, please include them. You do not need a complete specification.

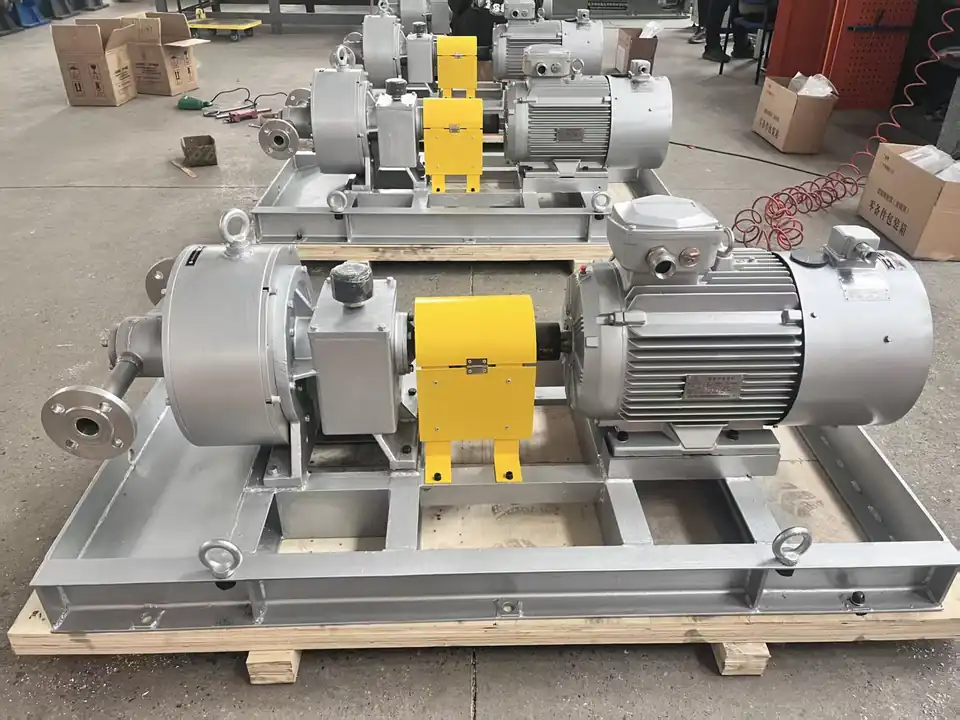

Complete EHIK pump set with motor, coupling guard and base.
Complete pump-set supply: pump, drive, guard and base.
Can EHIK supply pumps for coal tar and feedstock oil?

Yes. EHIK has supplied pumps for both feedstock oil and coal tar, including coal-tar pumps for steel plants. Contact EHIK for help selecting the pump, materials and drive for your liquid and production requirements.

Does the pump selection include cold startup?

Yes. Cold startup and normal operation are considered together. Oil heating, the lowest operating temperature, and warming or flushing procedures affect viscosity, the drive and the inlet-side mechanical seal.

What if the liquid contains particles?

Particle size, concentration and hardness affect wear. EHIK reviews the liquid path, materials and wear-resistant pickup tubes together.

Can flow be adjusted as production changes?

Yes. Variable-speed control can be included. EHIK selects the pump curve, motor and controls together for your production range, including operation away from the rated point.

Can you replace an existing belt-driven or multistage pump?

Yes. EHIK's field records include multistage pump replacement at Naisiter and belt-connected equipment replacement at Yunwei Feihu and Longxing. Contact EHIK to review a replacement.

Do you supply pumps for dry carbon-black powder?

This page is about liquids: feedstock oil, coal tar, liquid additives and water. It does not cover dry-powder conveying. EHIK can help with the liquid circuits in your process.

Start a New Project

Plan Your Carbon Black Pumping Project.

Contact EHIK for feedstock-oil, coal-tar or liquid-additive pumping. We can help select the pump, wear-resistant options and supply package for your production line. We reply within 1 business day.

Send Your Flow and Head

Tell us the flow, head and liquid. We reply within 1 business day.
Only your name or company and your email are required.
Use the Full Inquiry Form

Replacing a pump? We check the operating requirements and fit, and custom flanges can match your existing piping.

Pump Selection

A recommendation based on your liquid and operating range.

Performance Curves

To check how the proposed pump will perform.

Outline Drawings

Dimensions and interfaces for installation planning.

Technical Support

Support with configuration, included equipment and project questions.
