Paper-Machine Water Systems

High-Pressure Shower Pumps for Paper Machines

Continuous water for felt and wire-screen showers, water-jet cutting and central flushing, with the pump and drive matched to each circuit.

Felt & wire-screen showersWater-jet cuttingCentral flushing

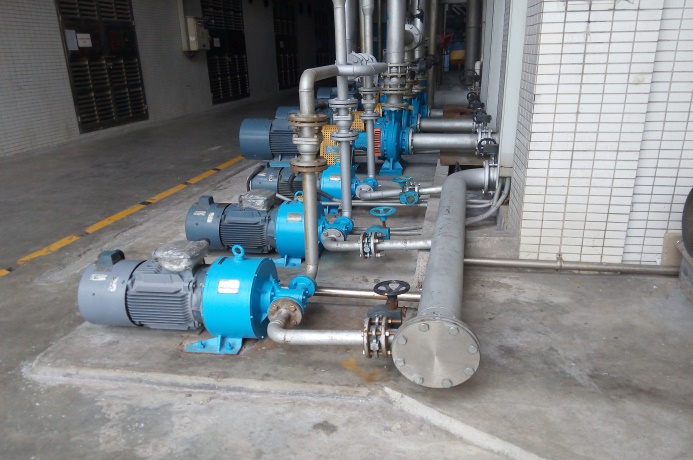

EHIK pump sets connected to a row of shower-water pipes at a Vinda paper mill in China.
Felt and wire-screen shower pumps at a Vinda paper mill in China.

High Head at Low Flow

EHIK’s single-stage design gives the head needed for difficult water circuits, without many pumping stages. The pump is selected for your shower or cutting nozzles.

Continuous Water Delivery

The rotating pump has no back-and-forth pumping strokes, so the showers or cutting nozzles get a continuous flow.

One Supplier for Pump and Drive

Pump, drive and base, with drawings and performance curves for the mill team. Add pipework, instruments and controls if the project needs an integrated skid.

The Water Side of Papermaking

Three Water Circuits. Different Demands.

The pump supplies the water. The shower or cutting system decides where it is used, the nozzle pressure and how many outlets run at the same time.

Felt & Wire-Screen Showers

Cleaning water for the shower headers that clean paper-machine fabrics and wire screens. The pump requirements depend on nozzle demand, the pressure needed and how many groups run at the same time.

The pump selection must also include filters and pressure losses between the pump and the shower.

Water-Jet Cutting

A small flow of high-pressure water for the cutting nozzles. EHIK supplies this water-jet cutting application at Xiawang Paper.

The pump is defined by the cutting-system supplier's flow and pressure, and by how the system runs and stands by.

Central Flushing

Water for the mill's flushing circuit from one supply point. For a shared header, we need the peak demand, how the outlets are used and the hardest delivery point.

Before combining applications on one pump system, confirm whether flushing runs continuously, from time to time, or at the same time as other water users.

Shower pipe spraying cleaning water across a paper-machine felt.
A felt shower in operation. The pump supplies the water for this shower.

These pumps handle water for cleaning and cutting—not pulp stock, fiber slurry or black liquor.

Installed Equipment / Vinda

Felt & Wire-Screen Showers at Vinda.

EHIK pump sets supply water for felt and wire-screen cleaning at Vinda's paper mills, through the headers and valves.

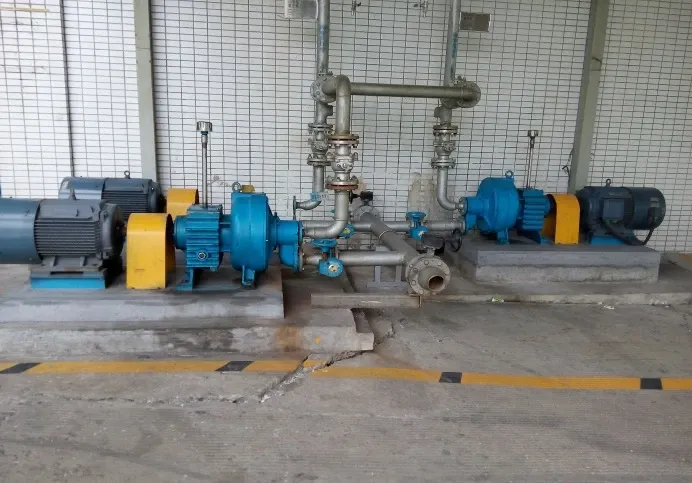

Blue EHIK pumps, motors, valves and connected water pipework at a Vinda paper mill.

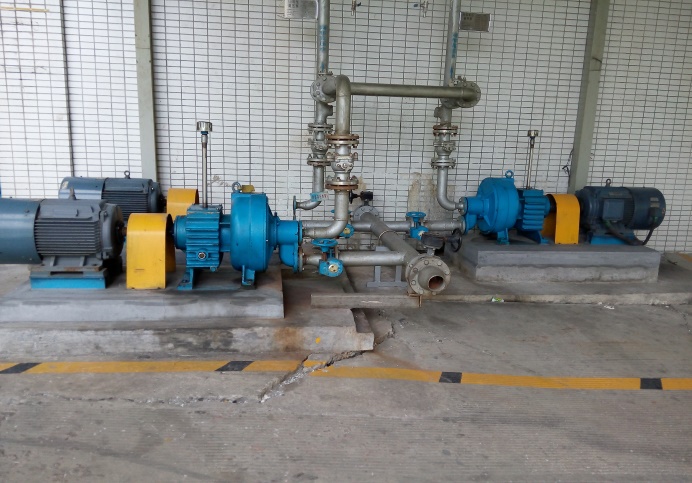

Vinda, China — shower-pump installation with the surrounding pipework and valves.

Built Around the Shower-Water Circuit.

At Vinda, the pump sets are part of the mill's felt and wire-screen washing system, installed next to the paper machine.

For a new paper-machine line, EHIK can select pumps based on each shower group's flow and pressure, which groups run together, and the water supply available.

If these water requirements and the machine’s control signals are agreed early, the mill and the equipment supplier can plan the layout together.

Discuss Your Application

Installed Equipment / Xiawang Paper

Water-Jet Cutting and Central Flushing.

Separate EHIK pump installations serve the water-jet cutting and central-flushing applications at Xiawang Paper.

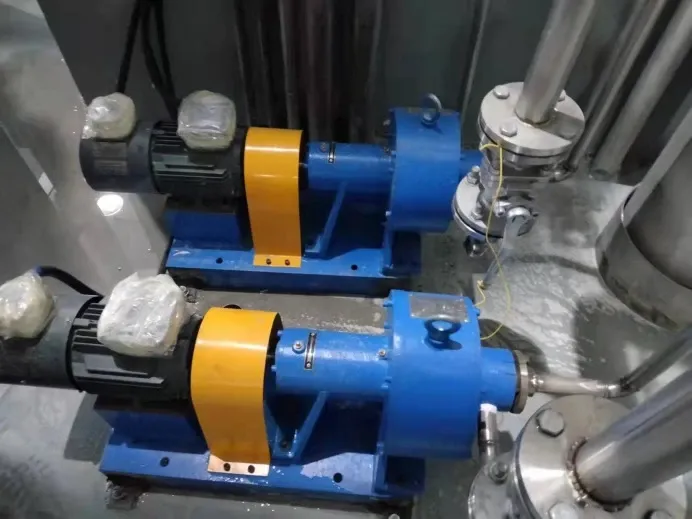

Two EHIK pump sets and connected piping used for water-jet cutting at Xiawang Paper.
Water-Jet CuttingEHIK pump sets serving the water-jet cutting application at Xiawang Paper.

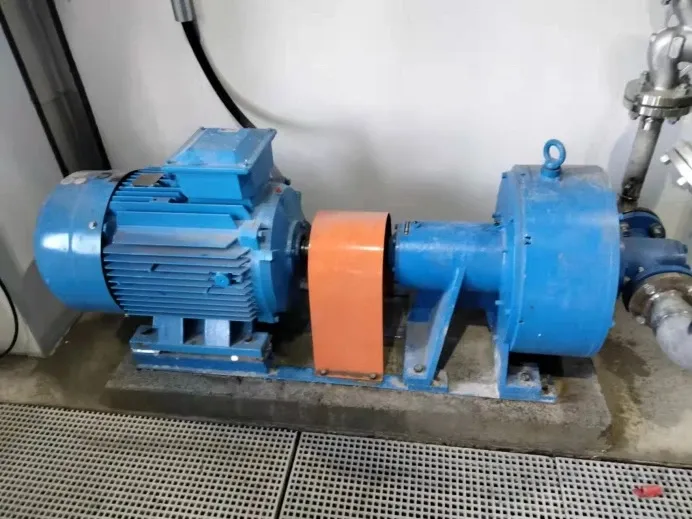

EHIK central-flushing pump with a blue motor and orange coupling guard at Xiawang Paper.
Central FlushingA separate EHIK pump serving the mill's flushing-water circuit.

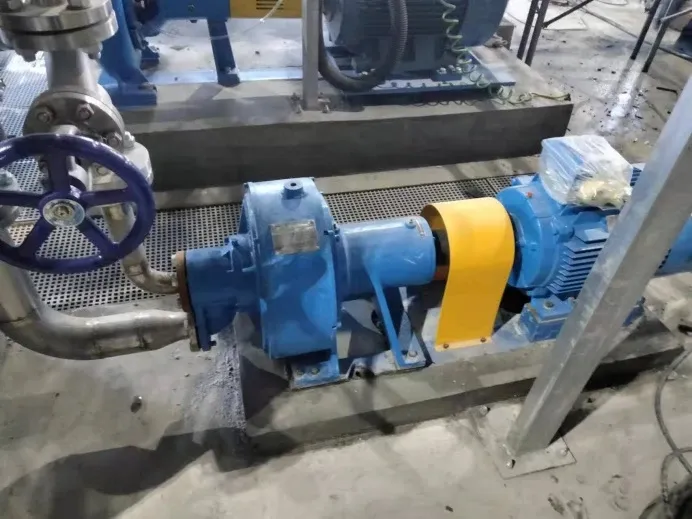

Close view of a blue water-jet cutting pump, yellow coupling guard, motor and piping at Xiawang Paper.
Pump, Drive and ConnectionsA closer view of the water-jet cutting installation.

Equipment Detail

Dedicated Equipment for Each Water Circuit.

The cutting nozzles determine one set of pump requirements. The active outlets and total demand determine the flushing requirements. EHIK selects each pump for these needs, and for water quality, inlet supply and piping losses.

The close view shows the pump, drive, coupling guard and connected pipework at the cutting installation. EHIK can supply a pump and drive on a common base, or a skid with pipework, instruments and controls.

From Nozzle Demand to Pump Selection

Match the Pump to the Water Circuit.

The pressure at the pump is not the same as the pressure at the shower. Pipework, control valves, filters and height differences reduce it.

Flow & Pressure

Nozzle type, number, flow and pressure decide the water demand. The selection covers minimum, normal and peak demand, including shower groups that run together and any separate cutting service.

Water & Inlet Supply

The water source, temperature, inlet pressure or tank level, filters and suspended solids affect the selection. EHIK matches the pump to the water treatment and the nozzles.

Operation & What’s Included

Continuous or part-time use, controls, standby pumps, power supply and space decide the package. EHIK helps define which valves, instruments and pipework are included.

Paper-Mill Project Questions

Plan Your Paper-Mill Water Supply.

Start with the paper-machine service and the information you have. You do not need a complete mill specification to start. We reply within 1 business day.

Which paper-machine water applications does EHIK support?

EHIK supplies pumps for felt and wire-screen showers, water-jet cutting and central flushing, with actual installations at Vinda and Xiawang Paper shown above. These are water applications. Pulp stock and fiber slurry are different services and are not covered by these projects.

How do pump pressure and shower pressure differ?

The pump pressure must cover the pressure needed at the nozzles, plus losses in the pipework, filters and control valves, and any height difference. EHIK can help establish the pump requirements for the shower circuit.

Can one pump supply several shower groups?

It depends on the total flow and which groups run together. EHIK reviews the demand and the operating sequence when defining the pump and controls.

Can treated or reused water be used?

Both the pump and the nozzles must suit the water's chemicals, particles and filtration. EHIK checks the pump together with the nozzle system's water-quality needs. If the water is recycled, please also tell us its chemicals, particle size and filtration level.

Can EHIK replace an existing shower pump?

Yes. Contact EHIK for replacement support. We review the water requirements, the problem and the connections with you before we propose a solution. Custom flanges can match your existing piping.

Start with Your New Line or Water Circuit

Let's Plan Your Paper-Mill Pump.

Contact EHIK for shower-water, cutting or central-flushing pumps. We can help match the pump and drive to your mill's water circuit.

Send Your Flow and Head

Tell us the flow, head and liquid. We reply within 1 business day.
Only your name or company and your email are required.
Use the Full Inquiry Form

Working with an existing pump? Discuss a Replacement

Pump Selection & Performance Curves

A proposed pump for the flow, pressure and operating needs of your water circuit.

Outline Drawings & What’s Included

Equipment size, connections and the agreed items for a pump set or integrated package.

Technical Support

Help for the mill’s engineers with the pumping requirements, water conditions and connections.
