Oil & Gas Applications
High-head, low-flow pumping for produced water, contaminated oil and field services. EHIK builds the pump or integrated skid for your liquid, operating conditions and site.
Start With the Duty
Your liquid, the flow and pressure you need, and your site decide what goes into the pumping package.
Produced Water
Pump gas-field and oilfield water at the flow and pressure the receiving system needs. Gas, sand, salts and corrosive substances decide the materials, wear protection and inlet arrangement.
EHIK supplies single pump sets and integrated packages that connect to your water-handling system.
Contaminated Oil
Sediment, polymers and changing liquid properties can make oil transfer difficult. The pump is matched to the liquid composition, temperature, inlet conditions and how it runs.
The Daqing Oilfield project below shows an EHIK pump on contaminated oil. Our project records show stable operation.
Remote Installations
Maintenance-free, unattended packages include the equipment and automatic controls a remote site needs. Choose an open-frame or enclosed layout to arrange and protect the equipment.

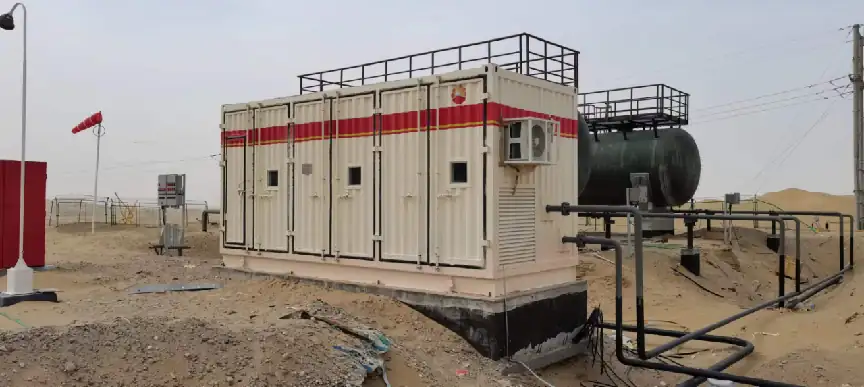

The Hotan desert project uses an enclosed package. After three years of successful operation, the customer ordered again.
Field Services
A dedicated pump skid gives the flow and pressure for well cleaning. We define the water temperature, cleaning work and site connections as part of the package.
At Longhupao Oilfield, when there were not enough well-cleaning trucks, our project records show hot-water cleaning of more than 100 wells.
Featured Project / Tarim Oilfield

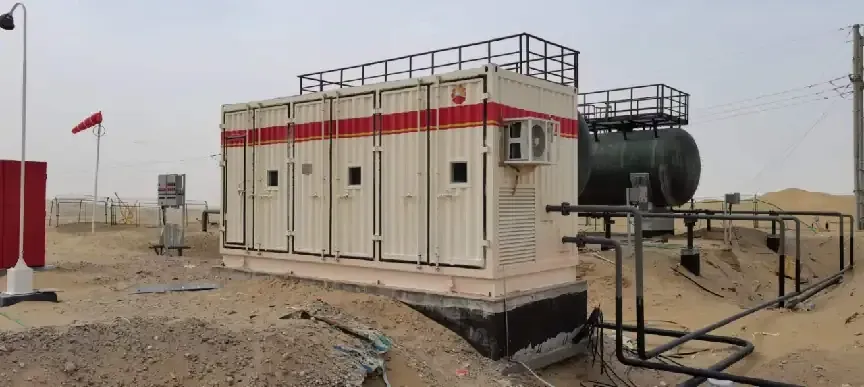

An enclosed pumping package for PetroChina's desert project in the Hotan area of Xinjiang.
PetroChina ordered one EHIK pump skid in 2022 for a desert project in the Hotan area of Tarim Oilfield.
After three years of successful operation, PetroChina ordered two more unattended pump skids in 2025.
The enclosed package holds the pumping equipment and supporting systems for a remote site. It shows how the pump and its operating environment can be planned as one package.
Read the Tarim Project Story
Inside the Equipment

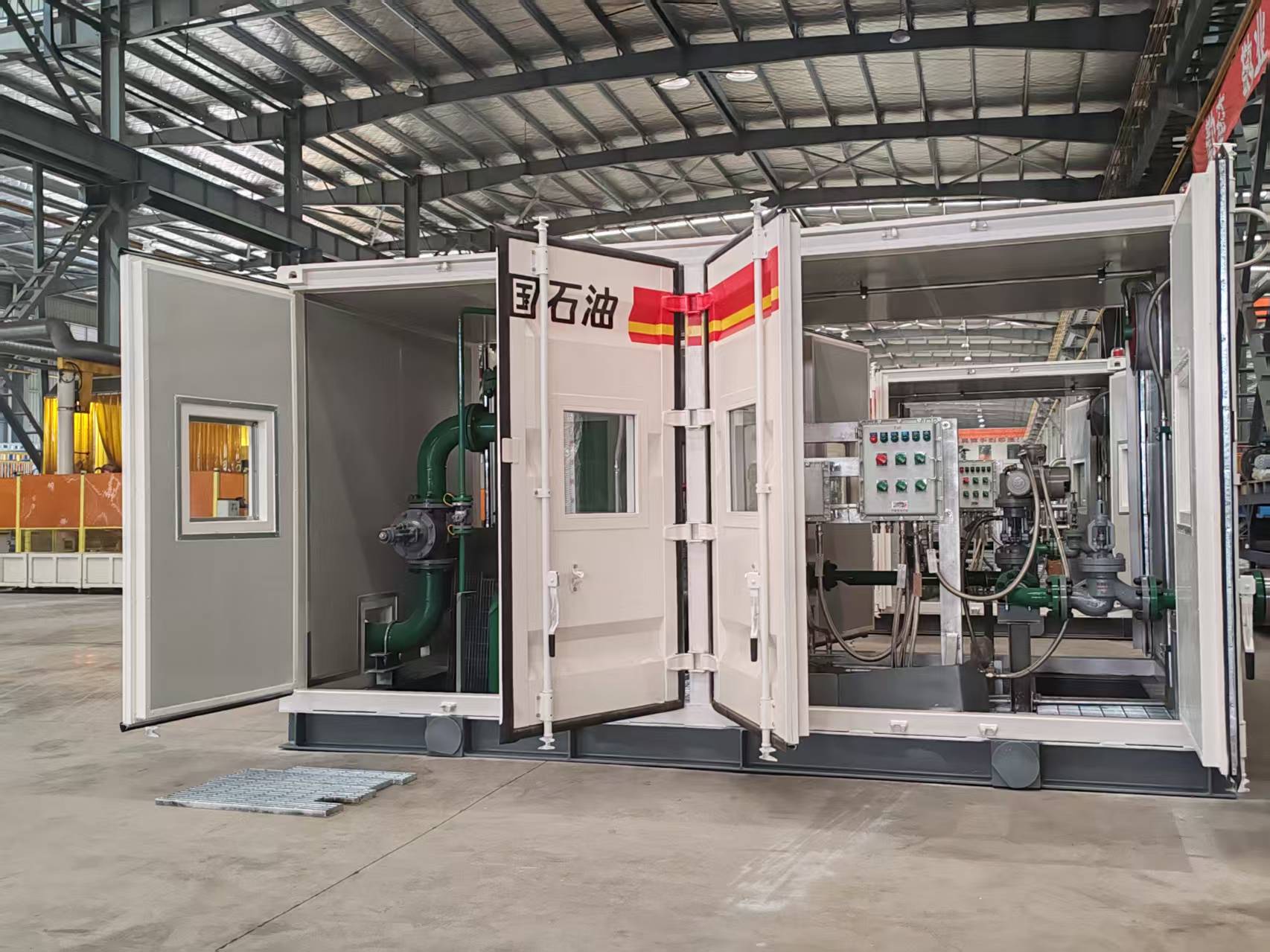

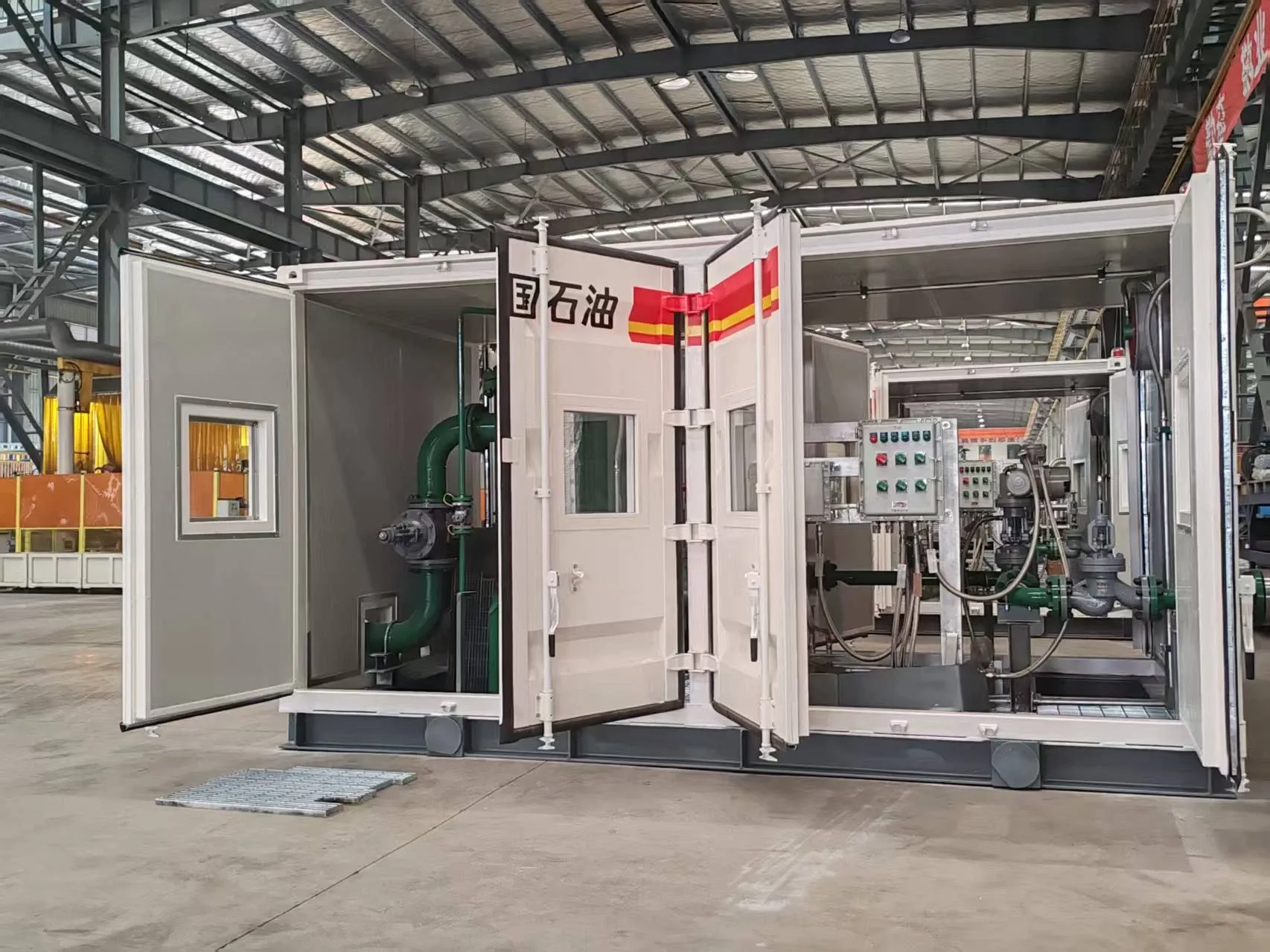

The open enclosure shows the valves, instruments, control panels and connected pipework. Because these are assembled before delivery, there is less work to do on site.
For your project, we define the process connections, power supply, control signals and access together with the pumping duty.
Explore the Pump Skid PackageGas-Field Water / Real Installations

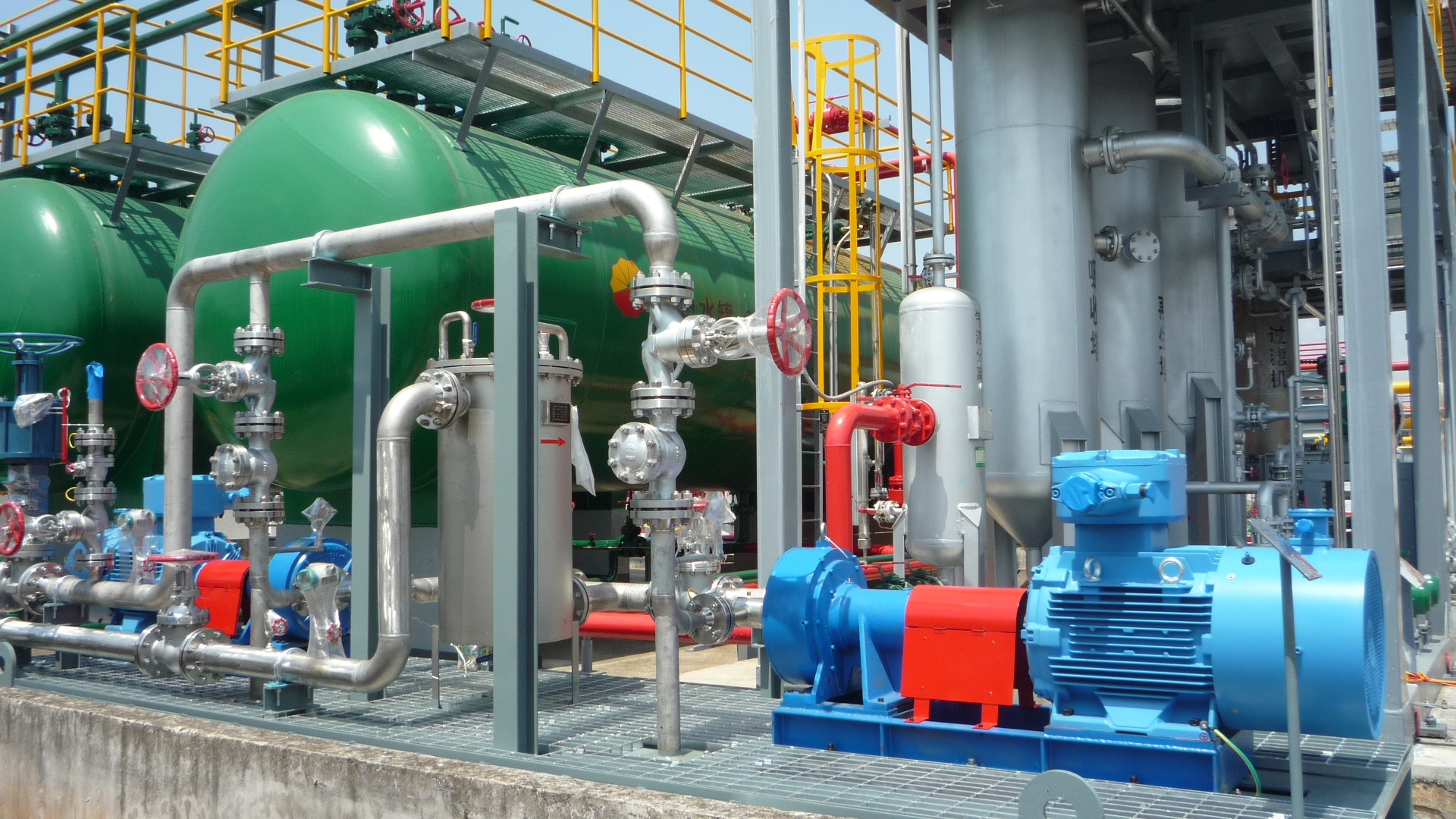

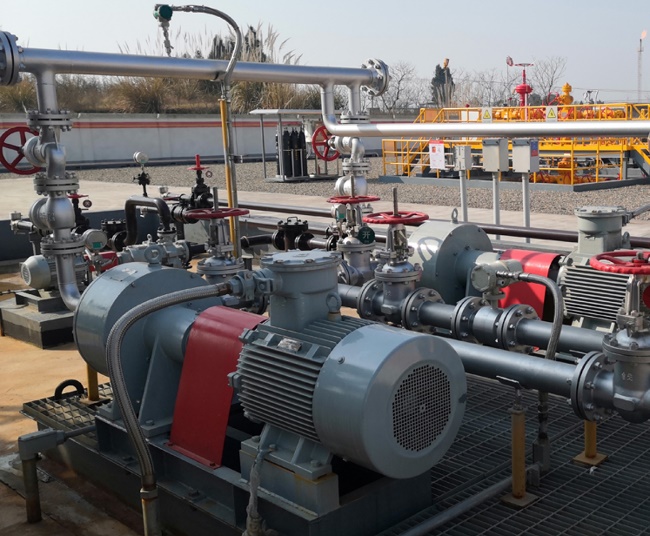

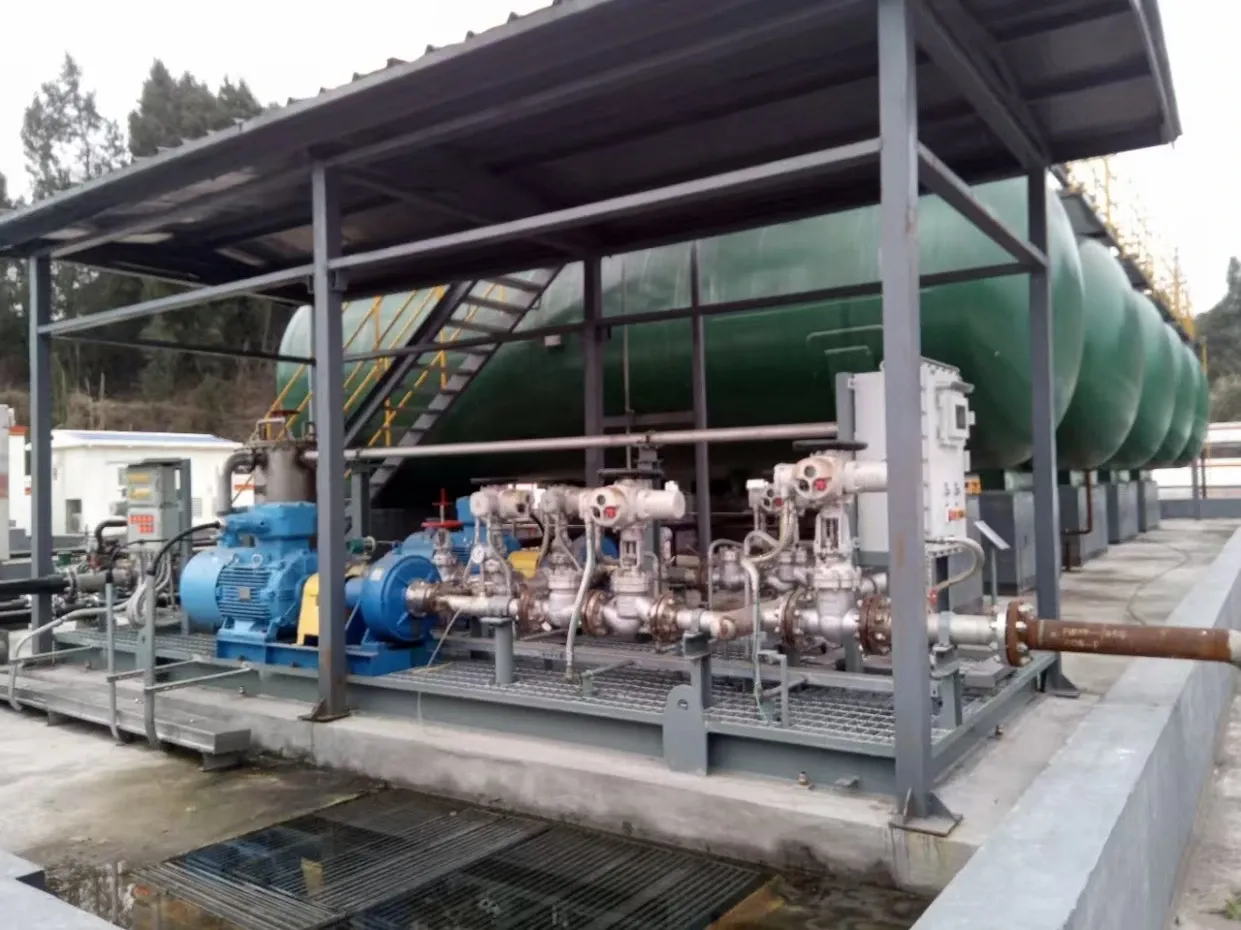

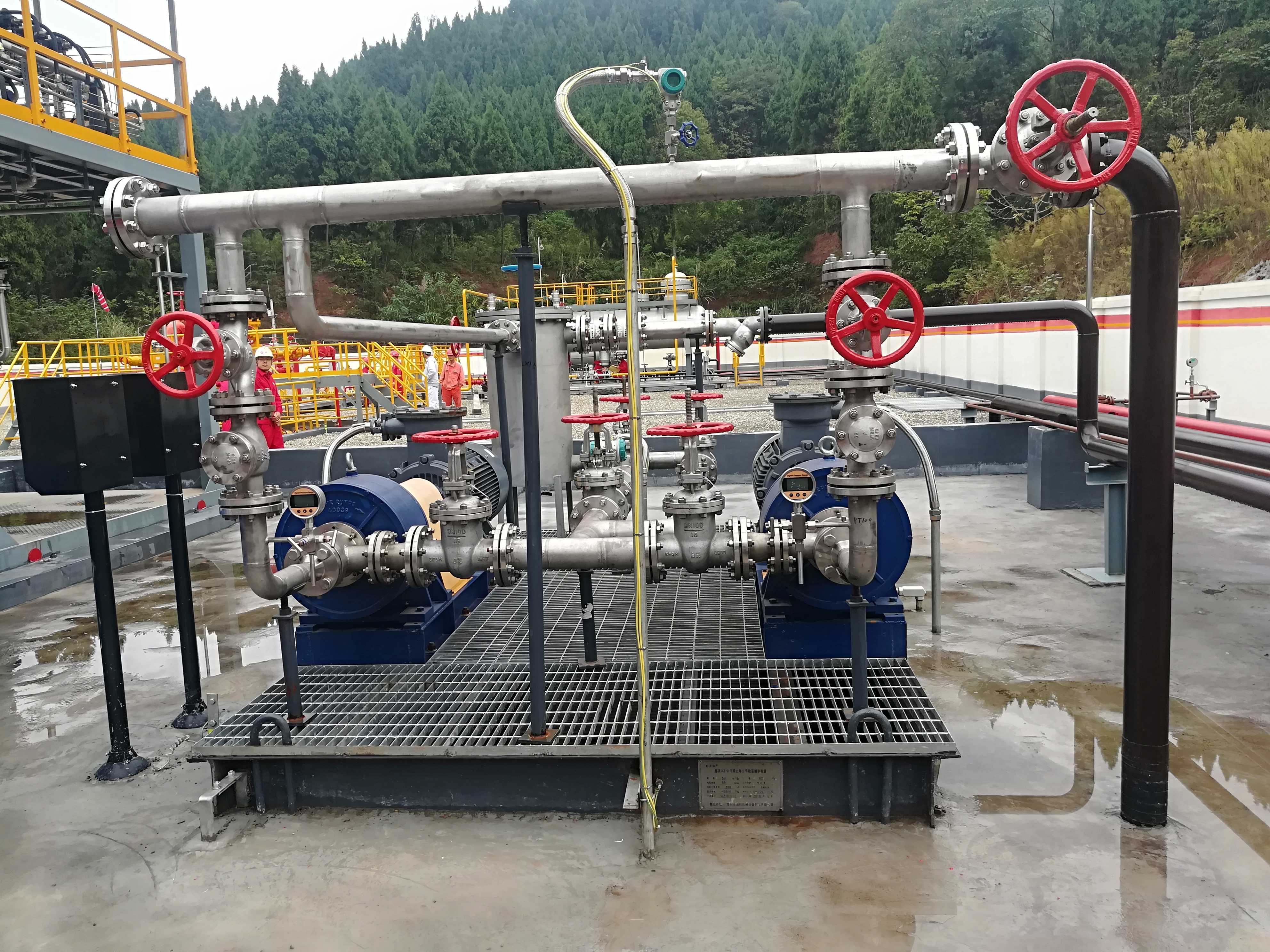

These three installations show EHIK pumps connected with vessels, operating valves, instruments and the site's water-handling pipework.
Different Problems / Different Duties
Our project records include both permanent liquid-transfer installations and equipment for field-service work.

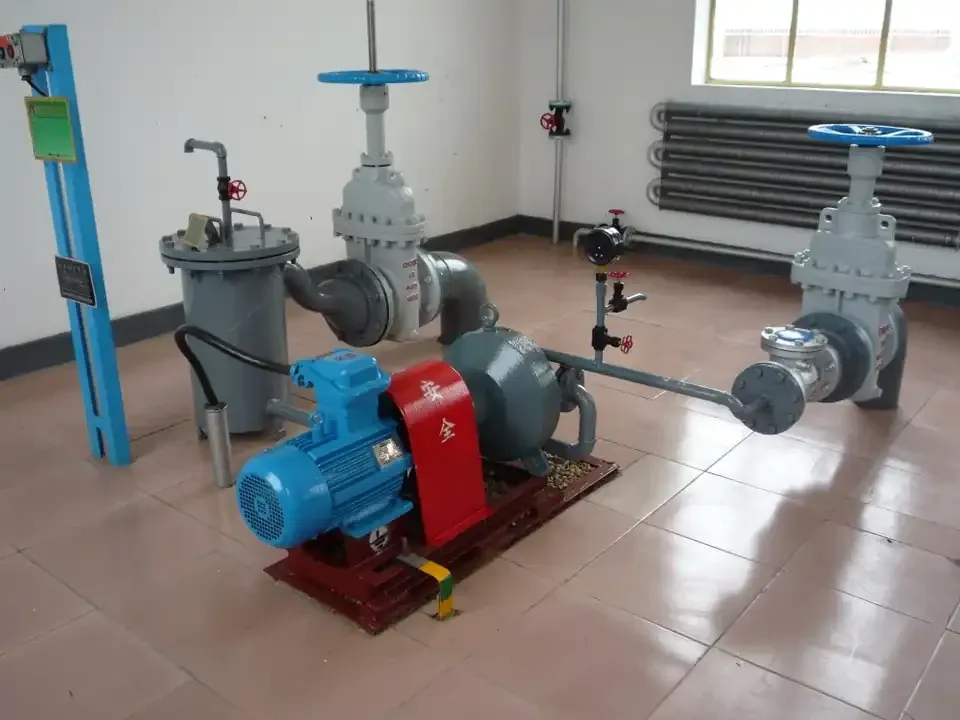

Oil with sediment and polymers made the old transfer equipment hard to run. An EHIK pump was installed for this transfer. Our project records show stable operation after installation.
For a similar liquid, start with its composition, solids and viscosity, then review wear-resistant options, materials and the inlet arrangement.

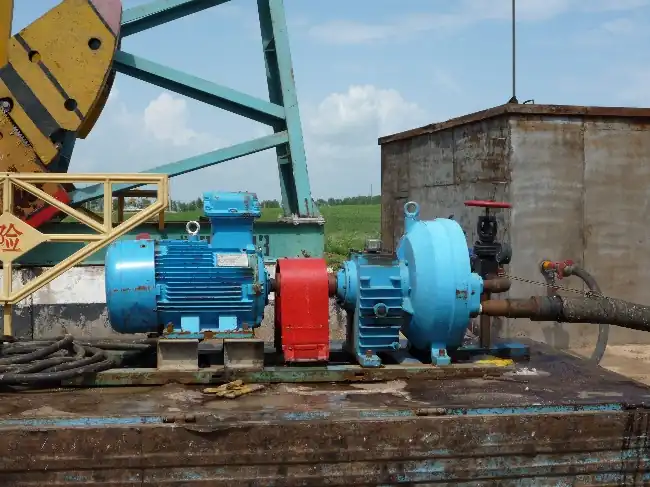

When there were not enough well-cleaning trucks at Longhupao Oilfield in Daqing, a pump skid did the work instead. Our project records show more than 100 wells cleaned between October and December 2010.
Compared with the usual hot-washing method, the project records show 30 litres less fuel per well and two fewer workers—a driver and a pump operator.
Recorded duty: 5–20 m³/h · 3–5 MPa · 37 kW.
Read the Well-Cleaning CasePlanning a New Installation
Pump selection and site layout should be discussed together. EHIK can supply a complete pump set or a skid with the supporting equipment your project needs.
Flow, pressure, liquid temperature and inlet conditions define the duty. H₂S, CO₂, chlorides, salts, sand and gas content influence materials, wear protection and the inlet arrangement.
Tank-level signals, automatic start/stop and the production range decide the control setup. Variable-speed control adjusts the pumping rate to changing demand.
Choose an open-frame or enclosed arrangement. Agree the power supply, control signals, piping interfaces, instrumentation and equipment access before manufacture.
EHIK skid packages need no dedicated concrete foundation or anchor-bolt fixing. Position the skid, connect the specified pipework and power, and start pumping.
Maintenance-free packages and automatic level-based controls let remote sites run without an operator.
The integrated package can be relocated as a unit and reused as site requirements change.
Existing-Equipment Upgrade / Kong 6 Well
In 2015, EHIK replaced the multistage pump at Kong 6 Well in PetroChina's Shunan Gas Mine. Our project records show stable operation and fewer repairs after the replacement.
Meter readings on site showed 39.5% less electricity per 10,000 m³ of gas-field water at Kong 6.
See the Comparison and Project DetailsOil & Gas Pump FAQs
Contact EHIK about your field application. If you know the liquid properties, flow or pressure, please include them. We work out the equipment scope from there.
A pump set brings together the pump and drive on a baseplate. A skid can also include vessels, pipework, valves, instruments and controls. EHIK helps define the supply scope and how the equipment connects to the site.
Liquid composition, temperature, gas content, and particle size and concentration affect the configuration. EHIK chooses materials, wear-resistant options, seal support and the inlet arrangement for these conditions. Gas–liquid separation can be part of the package if needed.
Yes. EHIK supplies maintenance-free, unattended packages with automatic level-based control. The package is designed around your signals, operating sequence, power supply and site environment. The Tarim reference includes two more unattended skids ordered in 2025.
No. EHIK's integrated skids need no dedicated concrete foundation or anchor bolts. Agree the location and site connections, put the package in place, and connect the pipework and power.
The gas–liquid package separates gas and liquid in the vessel and joins them again after the pump. The pump handles only the liquid while the system manages the gas, which helps reduce emissions. EHIK reviews the gas and liquid conditions when configuring this arrangement.
Not necessarily. The 39.5% figure is from that project. A fair comparison uses measured power, volume pumped, running hours and maintenance at the same duty. Contact EHIK to assess a replacement for your site.
Yes. Contact EHIK at any stage. Include any liquid properties, flow or pressure you know—you do not need a complete specification. We reply within 1 business day. EHIK can provide pump selection, performance curves, outline drawings and technical support.
Move Your New Project Forward
Contact EHIK for produced-water transfer, reinjection or field-service pumping. We can help select a pump set or an integrated package for your field operation. We reply within 1 business day.
Contact EHIKReplacing a pump? We review the duty and site connections, and custom flanges can match your existing piping.
Check the proposed pump against the flow, pressure and liquid you need.
Plan the equipment footprint and connections for your site layout.
Agree the equipment scope and get answers on operation, controls and installation from the manufacturer.
